Case #756507
My lights seem to be doing different things when FPP is playing?
Solved
Current Issue
My lights seem to be doing different things when FPP is playing?
Solution
Wrong pixels are lighting up when played from FPP
Normally this indicates that something has changed on the layout but FPP hasn't been updated, if you can re-render the sequence then save, then FPP Connect and make sure UDP Out is set to ALL.
What have they tried?
Plugging and unplugging things
Photos & Media

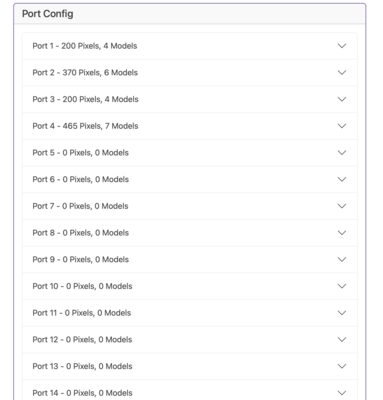

CleanShot 2025-12-14 at 7 [email protected]

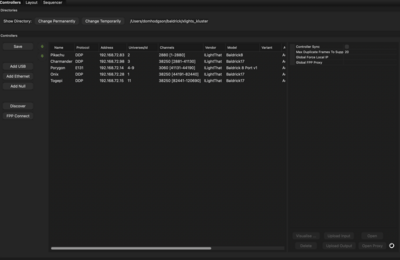

CleanShot 2025-12-14 at 7 [email protected]

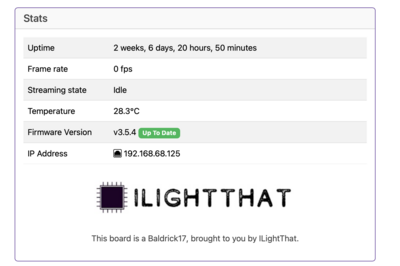

CleanShot 2025-12-14 at 7 [email protected]

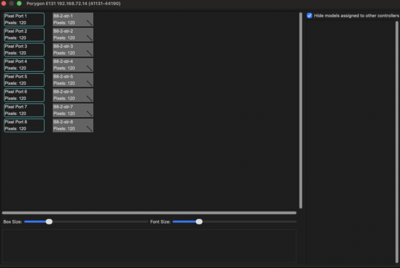

CleanShot 2025-12-14 at 7 [email protected]
CleanShot 2025-12-14 at 7 [email protected]
Baldrick Board System State
{"ram_available":52020,"ram_minimum":16,"ram_largest_block":23552,"uptime":1803075,"oom_count":2278,"host_comms":{"comms_state":[32]},"board_manufacturer":"ILightThat","board_model":"Baldrick17","flags":5,"temperature":[28.25],"network":{"ethernet_available":true,"wifi_available":false,"ethernet":{"ip_address":"192.168.68.125","subnet_mask":"255.255.255.0","gateway":"192.168.68.1","dns":"46.33.128.50","connected":true}},"network_throughput":751,"fpp":[{"hostname":"MAINBIGSCREEN","sw_version":"7.5","ip":"192.168.68.163","hardware":"Raspberry Pi 4 Model B Rev 1.5"},{"hostname":"FRONT-AUDIO","sw_version":"7.5","ip":"192.168.68.164","hardware":"Raspberry Pi 4 Model B Rev 1.5"}],"last_settings_update":1437834009,"ota":{"updatable":[{"current_firmware_version":"v3.5.4","current_factory_version":"v5.2.7","current_bootloader_checksum":"32ab0d624bb399dfd976b2158905546e","current_partition_checksum":"9c57a76ed996748ee7393a41df755985","available_firmware_version":"v3.5.4","available_factory_version":"v5.2.7","available_bootloader_checksum":"32ab0d624bb399dfd976b2158905546e","available_partition_checksum":"9c57a76ed996748ee7393a41df755985"},{"current_firmware_version":"v3.5.0","current_factory_version":"recovery_1.3","current_bootloader_checksum":"561b6496a66e02d22093130a0f3fd845","current_partition_checksum":"9c57a76ed996748ee7393a41df755985","available_firmware_version":"v3.5.0","available_factory_version":"recovery_1.3","available_bootloader_checksum":"561b6496a66e02d22093130a0f3fd845","available_partition_checksum":"9c57a76ed996748ee7393a41df755985"}]},"buddies":[{"hostname":"front-house-left","sw_version":"v3.5.4","ip":"192.168.68.151","type":"Baldrick 8 Port v1","num_pixel_ports":8,"num_relay_ports":0,"num_dmx_ports":0,"board_id":"c82e18d71788"},{"hostname":"boooobs","sw_version":"v3.5.4","ip":"192.168.68.150","type":"Baldrick 8 Port v1","num_pixel_ports":8,"num_relay_ports":0,"num_dmx_ports":0,"board_id":"409151cc64f0"},{"hostname":"front-house-right-a","sw_version":"v3.5.4","ip":"192.168.68.119","type":"Baldrick17","num_pixel_ports":1,"num_relay_ports":0,"num_dmx_ports":0,"board_id":"1408085f0b70"},{"hostname":"back-main-a","sw_version":"v3.5.4","ip":"192.168.68.134","type":"Baldrick17","num_pixel_ports":1,"num_relay_ports":0,"num_dmx_ports":0,"board_id":"1408085e7db8"},{"hostname":"front-main-a","sw_version":"v3.5.4","ip":"192.168.68.122","type":"Baldrick17","num_pixel_ports":1,"num_relay_ports":0,"num_dmx_ports":0,"board_id":"1408085e7a24"},{"hostname":"front-main-b","sw_version":"v3.5.4","ip":"192.168.68.129","type":"Baldrick17","num_pixel_ports":1,"num_relay_ports":0,"num_dmx_ports":0,"board_id":"c0cdd60057a8"},{"hostname":"back-main-b","sw_version":"v3.5.4","ip":"192.168.68.130","type":"Baldrick17","num_pixel_ports":1,"num_relay_ports":0,"num_dmx_ports":0,"board_id":"1408085f0c10"},{"hostname":"back-tree-a","sw_version":"v3.5.4","ip":"192.168.68.121","type":"Baldrick17","num_pixel_ports":1,"num_relay_ports":0,"num_dmx_ports":0,"board_id":"1408085e7f90"},{"hostname":"back-tree-b","sw_version":"v3.5.4","ip":"192.168.68.128","type":"Baldrick17","num_pixel_ports":1,"num_relay_ports":0,"num_dmx_ports":0,"board_id":"1408085e7acc"},{"hostname":"front-house-wendy","sw_version":"v3.5.4","ip":"192.168.68.115","type":"Baldrick17","num_pixel_ports":1,"num_relay_ports":0,"num_dmx_ports":0,"board_id":"1408085f0c00"},{"hostname":"housebaldrick","sw_version":"v3.5.4","ip":"192.168.68.126","type":"Baldrick17","num_pixel_ports":1,"num_relay_ports":0,"num_dmx_ports":0,"board_id":"1408085e7dfc"}],"frame_rate":0,"streaming":{"ddp_sources":[],"ddp_dropped":0,"ddp_recvd":0,"sacn_sources":[],"sacn_dropped":0,"sacn_recvd":0,"artnet_sources":[],"artnet_dropped":0,"artnet_recvd":0},"fx_state":false,"fx_active":"","test_mode_active":false,"test_dmx_preset":0,"test_pattern":"off","test_ports":"all","test_target":"configured","test_brightness":20,"test_fixed_colours":"#000000","test_sync_host":""}FPP Outputs State
{
"channelOutputs": [
{
"channelCount": -1,
"enabled": 1,
"interface": "eth0",
"startChannel": 1,
"timeout": 1000,
"type": "universes",
"universes": [
{
"active": 1,
"address": "192.168.68.159",
"channelCount": 92160,
"deDuplicate": 0,
"description": "bedroompanel",
"id": 2,
"monitor": 1,
"priority": 0,
"startChannel": 1,
"type": 4
},
{
"active": 0,
"address": "192.168.68.163",
"channelCount": 258048,
"deDuplicate": 0,
"description": "bigscreenaudio",
"id": 3,
"monitor": 1,
"priority": 0,
"startChannel": 92161,
"type": 4
},
{
"active": 1,
"address": "192.168.68.151",
"channelCount": 6399,
"deDuplicate": 0,
"description": "front-house-left",
"id": 1,
"monitor": 1,
"priority": 0,
"startChannel": 350209,
"type": 4
},
{
"active": 0,
"address": "192.168.68.158",
"channelCount": 270000,
"deDuplicate": 0,
"description": "guestprojector",
"id": 7,
"monitor": 1,
"priority": 0,
"startChannel": 356608,
"type": 4
},
{
"active": 1,
"address": "192.168.68.115",
"channelCount": 6708,
"deDuplicate": 0,
"description": "front-house-wendy",
"id": 9,
"monitor": 1,
"priority": 0,
"startChannel": 626608,
"type": 4
},
{
"active": 1,
"address": "192.168.68.122",
"channelCount": 16479,
"deDuplicate": 0,
"description": "front-main-a",
"id": 5,
"monitor": 1,
"priority": 0,
"startChannel": 633316,
"type": 4
},
{
"active": 1,
"address": "192.168.68.129",
"channelCount": 12075,
"deDuplicate": 0,
"description": "front-main-b",
"id": 10,
"monitor": 1,
"priority": 0,
"startChannel": 649795,
"type": 4
},
{
"active": 1,
"address": "192.168.68.125",
"channelCount": 3705,
"deDuplicate": 0,
"description": "front-house-right-b",
"id": 11,
"monitor": 1,
"priority": 0,
"startChannel": 661870,
"type": 4
},
{
"active": 1,
"address": "192.168.68.119",
"channelCount": 12300,
"deDuplicate": 0,
"description": "front-house-right-a",
"id": 12,
"monitor": 1,
"priority": 0,
"startChannel": 665575,
"type": 4
},
{
"active": 1,
"address": "192.168.68.121",
"channelCount": 14073,
"deDuplicate": 0,
"description": "back-tree-a",
"id": 13,
"monitor": 1,
"priority": 0,
"startChannel": 677875,
"type": 4
},
{
"active": 1,
"address": "192.168.68.128",
"channelCount": 15264,
"deDuplicate": 0,
"description": "back-tree-b",
"id": 14,
"monitor": 1,
"priority": 0,
"startChannel": 691948,
"type": 4
},
{
"active": 1,
"address": "192.168.68.134",
"channelCount": 10818,
"deDuplicate": 0,
"description": "back-main-a",
"id": 15,
"monitor": 1,
"priority": 0,
"startChannel": 707212,
"type": 4
},
{
"active": 1,
"address": "192.168.68.150",
"channelCount": 4533,
"deDuplicate": 0,
"description": "boobs",
"id": 8,
"monitor": 1,
"priority": 0,
"startChannel": 718030,
"type": 4
},
{
"active": 1,
"address": "192.168.68.130",
"channelCount": 9024,
"deDuplicate": 0,
"description": "back-main-b",
"id": 16,
"monitor": 1,
"priority": 0,
"startChannel": 722563,
"type": 4
},
{
"active": 1,
"address": "192.168.68.126",
"channelCount": 510,
"deDuplicate": 0,
"description": "housebaldrick",
"id": 1,
"monitor": 1,
"priority": 100,
"startChannel": 731587,
"type": 1,
"universeCount": 2
}
]
}
]
}Affected Boards
Baldrick8
Case Details
Submitted By
Dom Hodgson
Knowledge Level
6/10
I've helped out others with their issues
Case Opened
Sunday, December 14, 2025
at 07:28 AM
Case Closed
Sunday, December 14, 2025
at 04:00 PM
System Information
Baldrick Version
v3.5.4
FPP Version
7.5
Operating System
OSX
Possible Solutions
ChatBotDom suggests
Wrong pixels are lighting up when played from FPP
Normally this indicates that something has changed on the layout but FPP hasn't been updated, if you can re-render the sequence then save, then FPP Connect and make sure UDP Out is set to ALL.
Wrong pixels are lighting up when played from xLights
Normally this indicates that something has changed on the layout but the controllers hasn't been updated, if you can re-render the sequence then save, then go to the controllers tab in xLights and click Upload Outputs to the relevant controller.
