Board Dimensions

Baldrick Dimensions

Baldrick Boards are categorized into three board sizes: small, medium, and large. This means that we don't have to keep making new mounts and accessory sizes as we create new boards.

Important: Mounting holes in all our boards are M3. Please use the correct hardware for secure mounting.

Small Boards

We've designed the Small boards so they can be hidden inside a small junction or project box.

Small Board Specifications

• Category: Small form factor
• Mounting Holes: M3
• Installation: Hidden installations

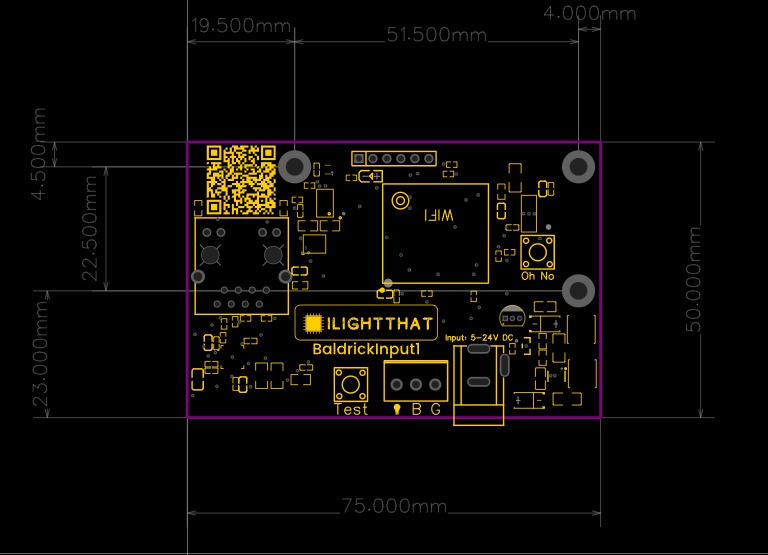

Small Baldrick Board Dimensions

Medium Boards

We based the dimensions of the Medium Baldrick boards to match similar boards already in the market so you can reuse mounts and 3D printed elements.

Community Fun Stuff: The Baldrick community have created an amazing range of mounts and STLs that you can print and use today.

Medium Board Specifications

• Category: Medium form factor
• Board Footprint: 117mm × 74mm
• Mounting Holes: M3
• Compatibility: Matches similar boards in market

Medium Baldrick Board Dimensions

Large Boards

The Large Baldrick boards are designed for applications requiring more processing power and connectivity options.

Large Board Specifications

• Category: Large form factor
• Board: Baldrick17
• Mounting Holes: M3
• Board Footprint: 115mm × 180mm

Large Baldrick Board Dimensions

Important Warning: Once again we ask DO NOT ENLARGE THE MOUNTING HOLES. Use the correct M3 hardware for secure mounting.

Board Compatibility

Small Form Factor

• BaldrickInput1
• BaldrickSignals
• Other compact controllers

Medium Form Factor

• Baldrick8
• BaldrickInput8
• BaldrickDMX
• BaldrickSwitchy

Large Form Factor

• Baldrick17

Related Fun Stuff

3D Printed Mounts

Download community-created STL files for custom mounts and enclosures.

View STLs & Mounts
