BaldrickSwitchy Technical Specifications

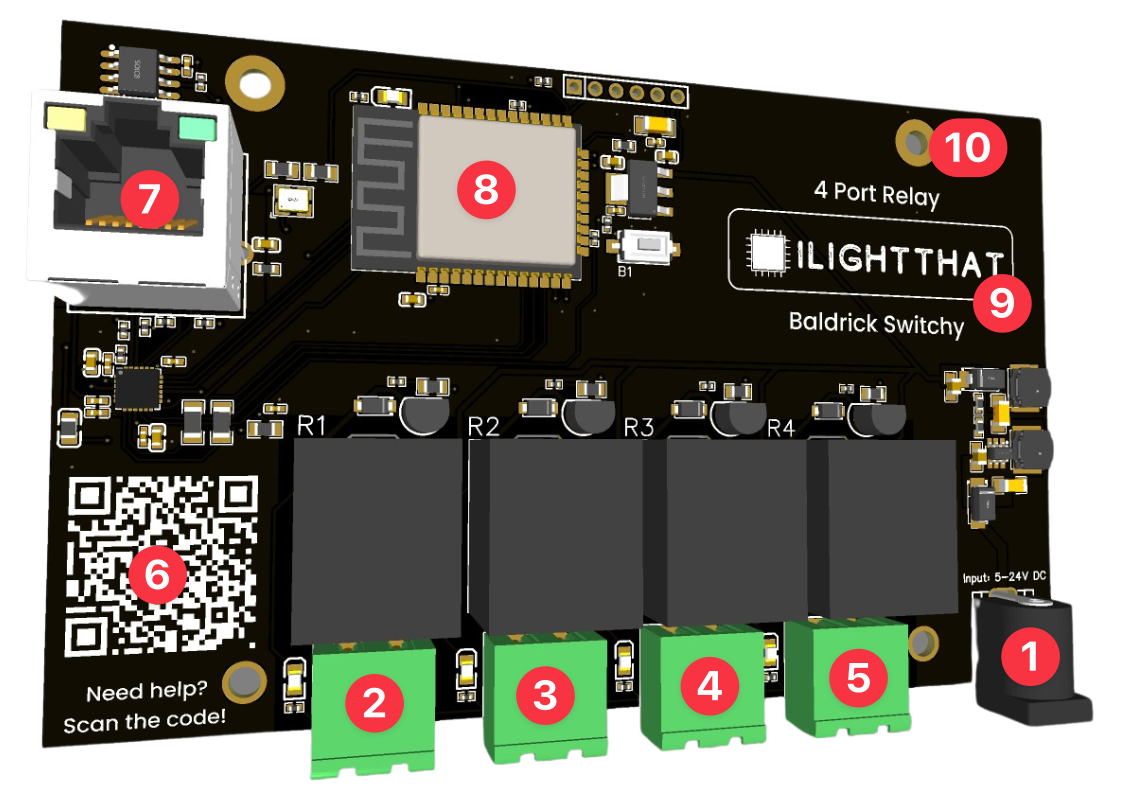

Board Components

1. Power Jack - You can put 5v-48v through a barrel connector (centre positive) and we use 5.5x2.1mm barrel jacks. Please remember you are just powering the board not the devices.
2. 2 Pin Pheonix Connector - You can put 5v-48v through this connector. Please remember you are just powering the board not the devices.
3. 3 Pin Relays - Connect your device to enable control via the BaldrickSwitchy.
4. QR Code - An easy to scan QR code which will take you to these docs for quick troubleshooting.
5. Ethernet port - To ensure the consistent connection to your devices, we've added a 100mb ethernet port to connect to your show network.
6. Oh No Button - Did you break our board? Press and hold this for 5 seconds on boot to reset to factory settings.
7. Mounting Holes - The BaldrickSwitchy is classed as a medium family member.
⚠️ DO NOT DRILL out these holes to make them fit the screws you've got already, doing this will void any warranty.

Note: The board will also come affixed to a Darwin Tray for your protection.
